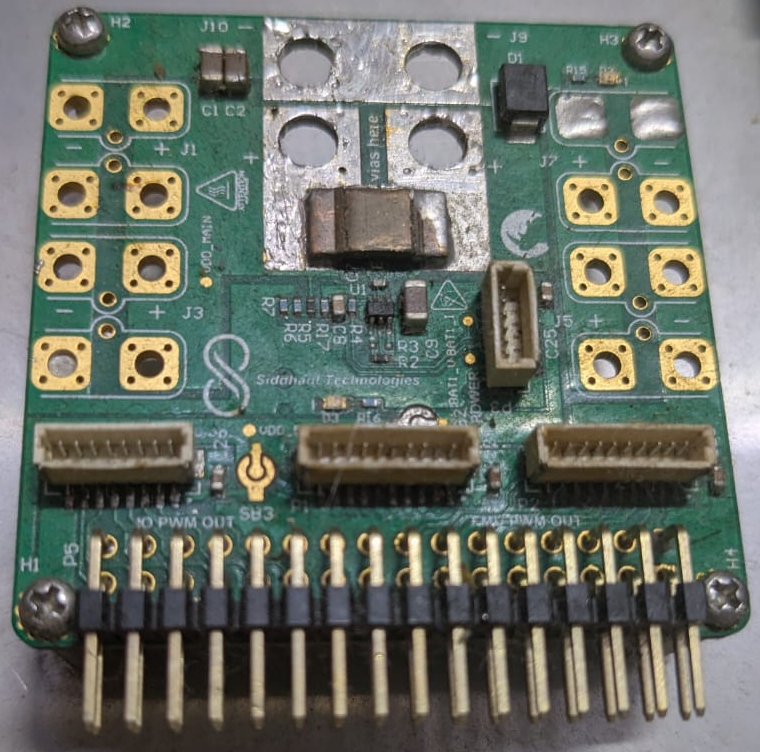

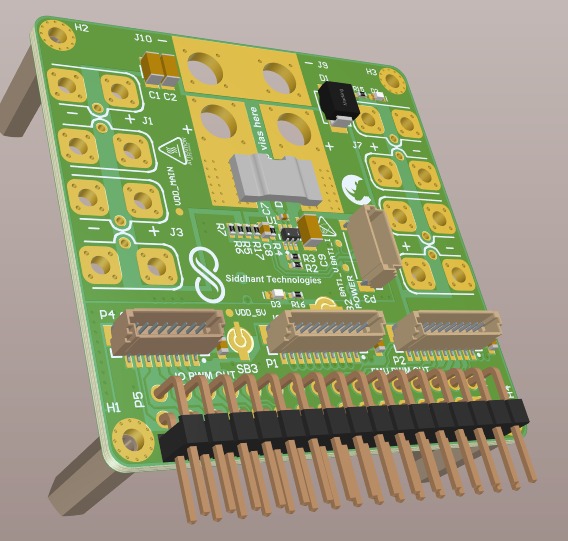

IndiPower-60A
IndiPower-60A provides regulated power supply to autopilot including our Indi-FCU-V1 from the battery. It can also logs the instantaneous current and voltage measurement to the autopilot. It provides 8 power supply port which can provide maximum of 15 A each with battery connected voltage supply.
| Category | Details |
|---|---|
| Input Voltage | 2S-6S |
| PCB Continuous Current Rating: | 60A |
| PCB Burst Current Rating: | 120 A (< 60 Sec) |
| Output DC | 5.2 V and 3 A max |
| Integrated Power Distribution | 8 ESC can be powered |
| Peripherals | Availability of PWM signals from autopilot |
Key Features
- Integrated Power Distribution for ESCs: Supports up to 8 Electronic Speed Controllers (ESCs), reducing the need for additional power modules.
- Real-Time Power Monitoring: Capable of logging instantaneous current and voltage measurements to the autopilot, aiding in battery health monitoring and power management.
- PWM Signal Availability: Ensures proper communication with autopilot systems via PWM signals, improving compatibility with flight controllers.
